Product Overview Spring Hanger and Spring Supports

Spring hangers and
spring supports

Contact

HYDRA® spring hangers and spring supports are mobile pipe supports with linearly variable bearing behaviour. They have extremely low friction and only vary slightly from the theoretical load. The patented, infinitely variable blocking keeps the spring plate in position and can only be released if the bearing pressure is correct.

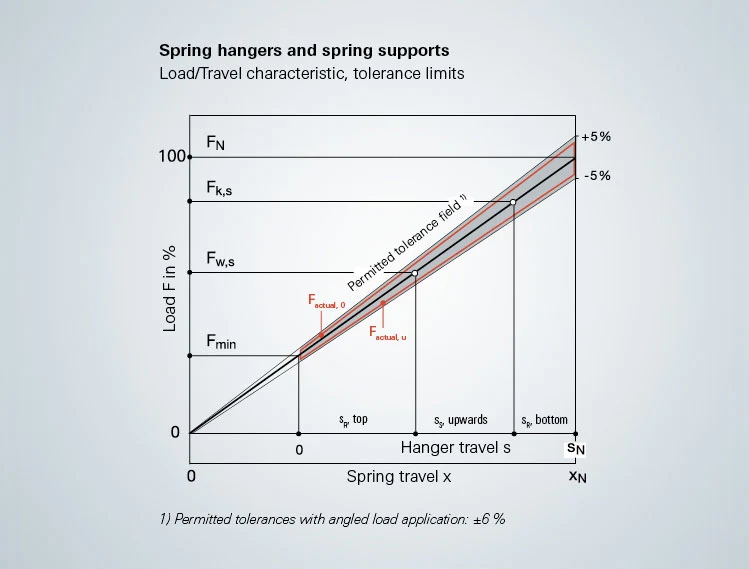

Load/travel characteristic

Characteristic: Load/travel diagram with the acceptable tolerance limits in recognized guidelines (e.g. VGB-R 510 L, KTA 3205.3). The buckling-resistant design, production and special thermal treatment guarantee a linearly unchangeable force-travel-curve of the springs.

Start load: F_minNominal load: F_N
Required load, cold (cold load): F_{k, s}Required load, warm (warm load): F_{w, s}
Spring rate: R
Spring travel, total: x_NNominal travel: s_N
Required travel: s_S
Travel reserve: s_{R 1"}

learn more

Types of spring hangers

Type FDT

The double hanger with traverse is appropriate for suspending pipelines that run close ben...

Type FHD

Spring hanger with double lugs for direct connection to a supporting structure above.

Type FHG

Spring hanger with threaded connection and threaded rod enables installation at any level.

Type FHS

Spring hanger for continuous tie rod is suitable for placement upon the load-bearing struc...

Types of spring supports

Type FSS/FSP

Spring support with support plate, placed upon the steel structure with a base plate.

Type FSG

Spring sway support transfers the load onto the load-bearing structure via joints.

CUSTOMISED SOLUTIONS

We can do more than just standard. We also find solutions for your demands.

24.489 HYDRA pipe supports and bearings

for a chemical plant

Pressure-relieved expansion joint

in highly chemically contaminated and corrosive atmospheres
